SACI MAGNUS SERİSİ POMPALAR

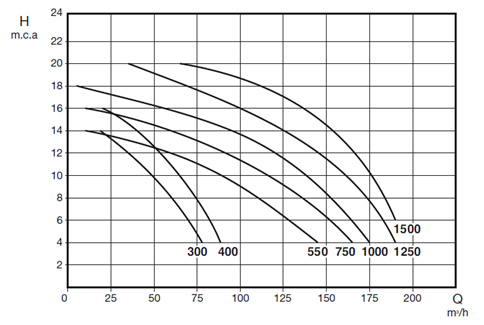

| KOD | AÇIKLAMA | HP | KW | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | BAĞLANTI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SACI3T | 3hp Trifaze | 3 | 2,2 | 70 | 60 | 48 | 35 | 18 | 110 – 110 | |||
| SACI4T | 4 hp Trifaze | 4 | 3 | 83 | 75 | 65 | 52 | 40 | 20 | 110 – 110 | ||
| SACI5,5T | 5,5 hp Trifaze | 5,5 | 4 | 125 | 110 | 90 | 60 | 10 | 110 – 110 | |||
| SACI7,5T | 7,5 hp Trifaze | 7,5 | 5,5 | 152 | 136 | 115 | 75 | 65 | 10 | 110 – 110 | ||
| SACI10T | 10 hp Trifaze | 10 | 7,5 | 165 | 155 | 138 | 120 | 95 | 52 | 5 | 110 – 110 | |
| SACI12.5T | 12.5 hp Trifaze | 12,5 | 9,2 | 183 | 175 | 160 | 145 | 125 | 100 | 68 | 35 | 110 – 110 |
| SACI15T | 15 hp Trifaze | 15 | 11 | 190 | 180 | 175 | 165 | 155 | 130 | 112 | 90 | 110 – 110 |

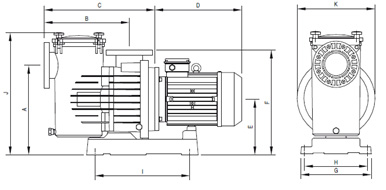

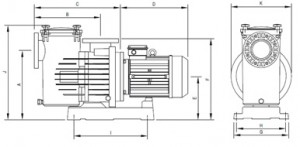

| KOD | A | B | C | D | E | F | G | H | I | J | K | AĞIRLIK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SACI3T | 420 | 405 | 508 | 310 | 265 | 505 | 335 | 300 | 450 | 590 | 370 | 42,5 |
| SACI4T | 420 | 405 | 508 | 310 | 265 | 505 | 335 | 300 | 450 | 590 | 370 | 44,5 |
| SACI5,5T | 420 | 405 | 508 | 310 | 265 | 505 | 335 | 300 | 450 | 590 | 370 | 53,4 |
| SACI7,5T | 420 | 405 | 508 | 310 | 265 | 505 | 335 | 300 | 450 | 590 | 370 | 66 |
| SACI10T | 420 | 405 | 508 | 310 | 265 | 505 | 335 | 300 | 450 | 590 | 370 | 76 |
| SACI12,5T | 420 | 405 | 508 | 310 | 265 | 505 | 335 | 300 | 450 | 590 | 370 | 84,5 |
| SACI15T | 420 | 405 | 508 | 310 | 265 | 505 | 335 | 300 | 450 | 590 | 370 | 85,5 |
