SACI WINNER SERİSİ POMPALAR

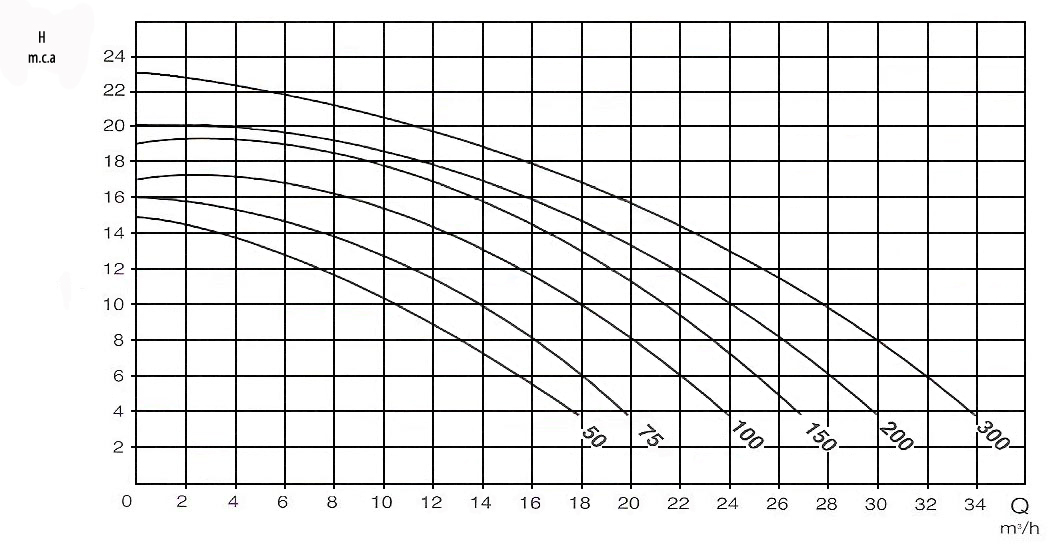

| KOD | AÇIKLAMA | HP | KW | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | BAĞLANTI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SACI0,75 | 0,75 hp Monofaze | 0,75 | 0,55 | 19,5 | 15,6 | 13,5 | 11,1 | 8,4 | 63 – 63 | |||
| SACI1M/T | 1 hp Monofaze / Trifaze | 1 | 0,75 | 23,2 | 21 | 19,7 | 18 | 15 | 12,3 | 8,7 | 63 – 63 | |
| SACI1,5M/T | 1,5 hp Monofaze / Trifaze | 1,5 | 1 | 27,7 | 26 | 24 | 21 | 19 | 17 | 13 | 10 | 63 – 63 |
| SACI2M/T | 2 hp Monofaze / Trifaze | 2 | 1,5 | 26 | 26 | 24 | 21 | 18 | 14 | 12 | 63 – 63 | |
| SACI3M/T | 3 hp Monofaze / Trifaze | 3 | 2,2 | 33 | 31 | 29 | 27 | 23 | 20 | 15 | 63 – 63 |

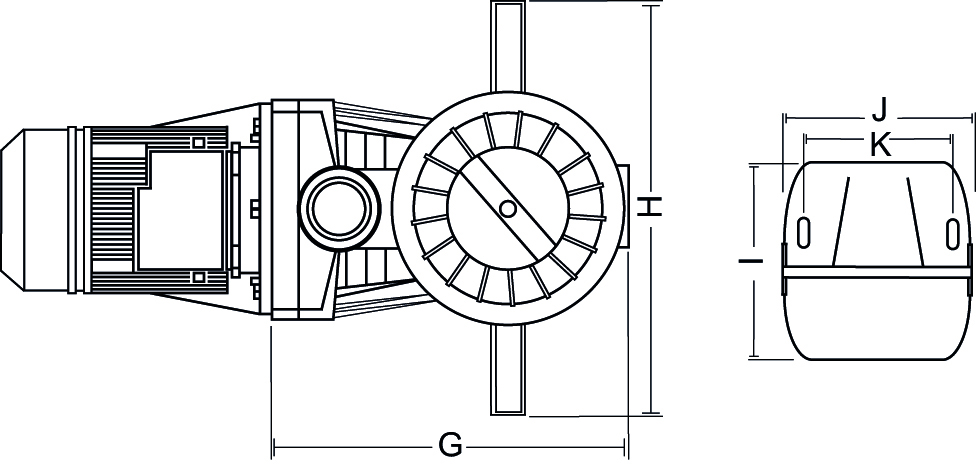

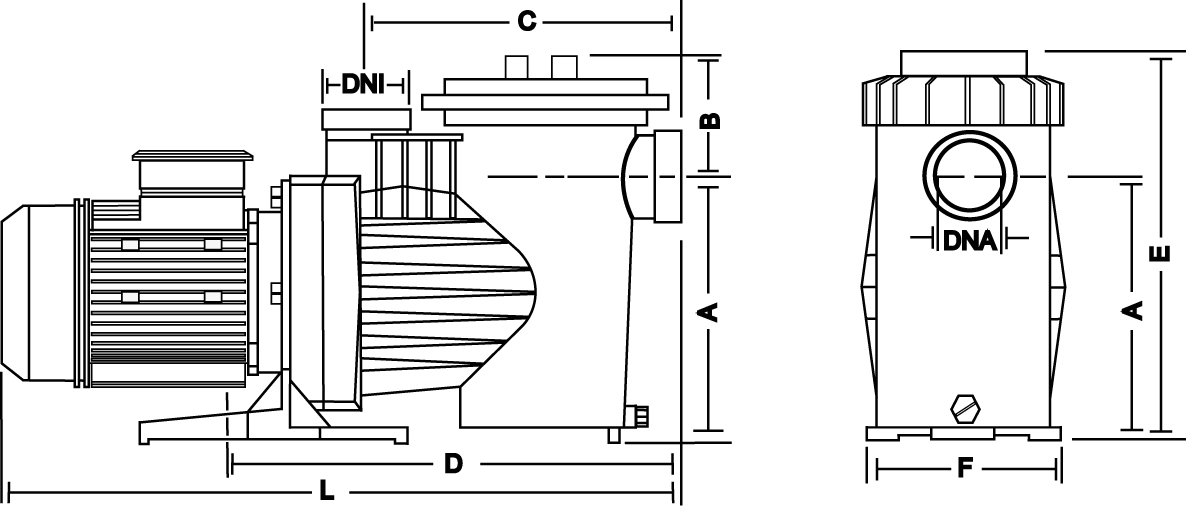

| KOD | A | B | C | D | E | F | G | H | I | J | K | L | AĞIRLIK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SACI0,75 | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 550 | 11,4 |
| SACI1M | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 550 | 13 |
| SACI1T | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 550 | 13 |
| SACI1,5M | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 580 | 15,8 |
| SACI1,5T | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 580 | 15,8 |
| SACI2M | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 650 | 18,4 |
| SACI2T | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 575 | 15,6 |
| SACI3M | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 650 | 21 |
| SACI3T | 216 | 109 | 265 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 650 | 21 |
